Full Automatic Earloop Ultrasonic Welding N95 Mask Making Machine
25-40 pcs/min
Automatic kn95 surgical mask making machine,full line include one
mask blank machine, one ear loop welding machine,one edge banding
machine,one nose clip machine
1, Machine Specifications
This production line is a fully automatic one-to-two face mask
machine, one body machine drives two ear band machines. After the
main body machine outputs the mask body, the mask body sheet is
conveyed to the turning mechanism by a conveyor belt structure. The
reversing mechanism is used to flip the mask plate onto the belt
connected to the ear band machine, and then the mask sheet is
conveyed to the first mask plate on the front of the ear band
machine through the conveyor belt, and finally the mask sheet is
placed on the ear band by the cylinder pressing In the mask plate
of the machine, the ear band machine is used to complete the
welding of the ear bands of the mask and the edging, thereby
completing the production of an ear band mask product.

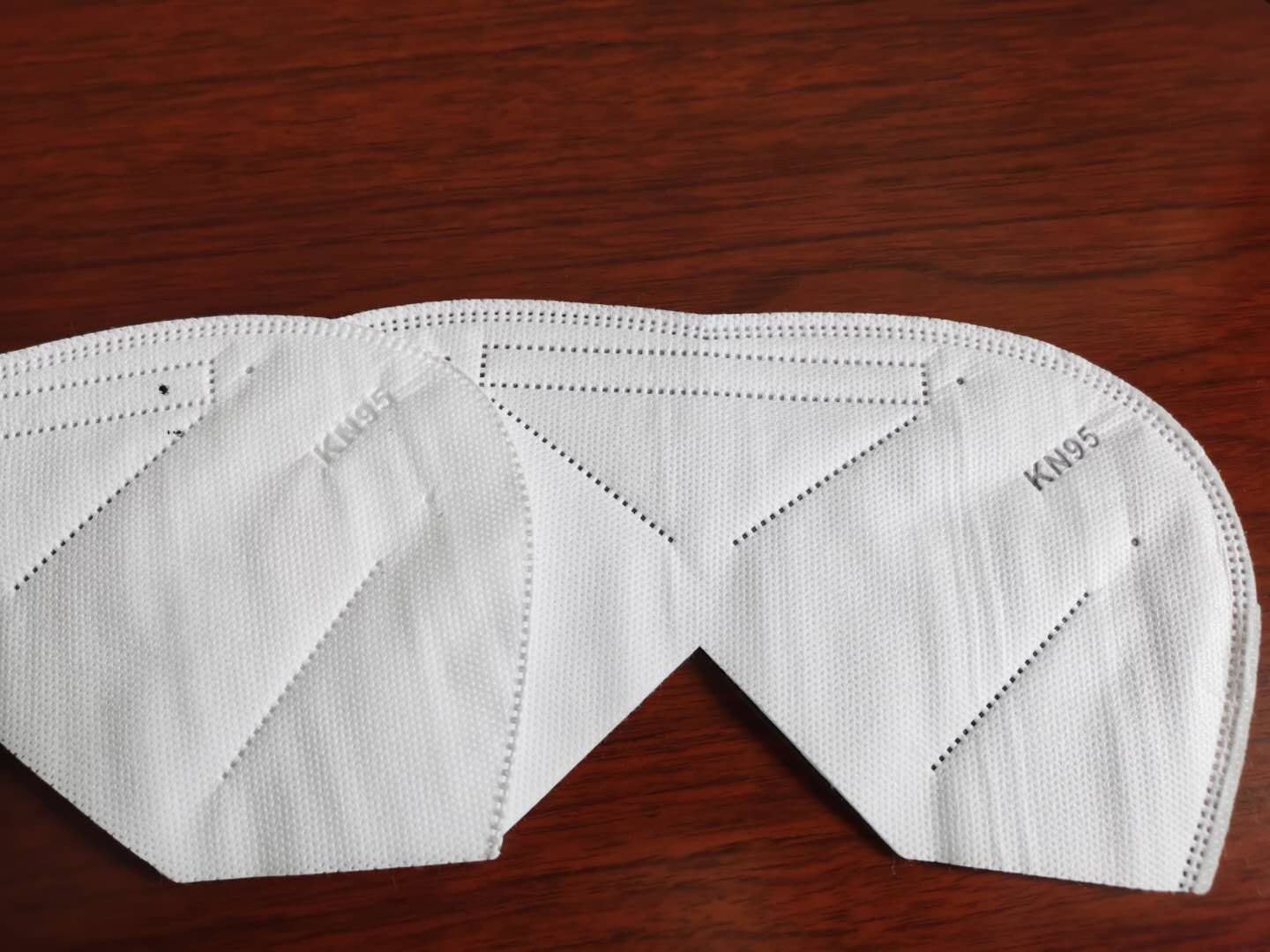

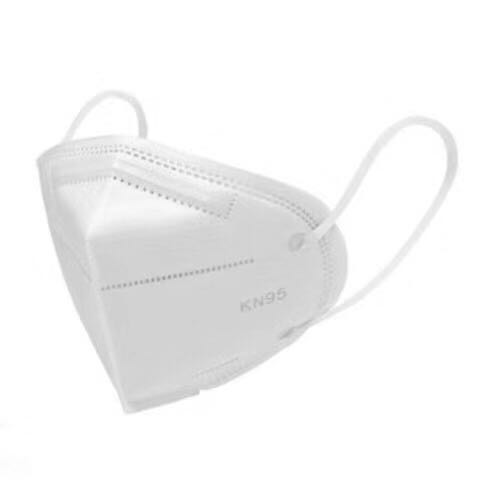

The equipment is used to produce a disposable non-woven mask. The
equipment is mainly composed of feeding, shaping, welding, cutting,
connecting and transferring, polar ear welding, blanking and
stacking, etc. In addition to manual feeding, the whole process
from the raw material feeding to the nose rib insertion edge
cutting finished product stacking is fully automatic operation. The
machine can be combined by one pull one or one pull two pole ear
welder to meet different production capacity requirements.
| No. | Item | Double Lanes |
| 1 | Model | D-0415 |
| 2 | Capacity | 100-120 pcs/min |
| 3 | Equipment Dimension | L 7050 X W 3800 X H 2000 mm |
| 4 | Space requires | 9.0m x 4.5m |
| 5 | Interface | Power | 3 phases 5 lines,380V, 25A |
| 6 | Energy consumption | maximum power | 13.5KW |
| 7 | Conditions of use | Space | The distance between the equipment and the wall shall not be less
than 900mm |
The process of the equipment is a fully automatic assembly line
which uses the principle of ultrasonic welding and edge sealing to
complete the composite forming of multi-layer materials of the
plane mask, then cutting, wrapping and welding the ear rope, and
make the finished products stack and transfer according to the
requirements.
2, Machine Pictures
Q1. Do you provide OEM or ODM service?
A: Yes, we have 4 designers for developing new products according
to your requirements.
Q2. What's the lead time?
A: Usually within 30 days, it would be longer for new designs.
Q3. What's the After-Sales Service?
A: Engineers available to service machinery overseas.
A: We provide 15 days of free accommodation for technical training,
till your engineer operate the machine well.
